I C Engine

Item Name

Engine Test Setup (Computerised) (246)

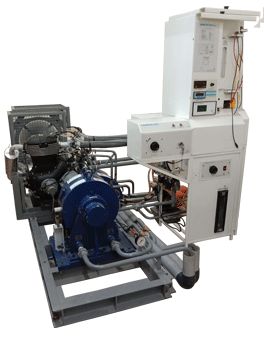

The setup consists of single cylinder, four stroke, electric start SI Petrol engine connected to eddy current type dynamometer for loading. It is provided with necessary instruments for combustion pressure and crank-angle measurements. These signals are interfaced to computer through data acquisition device for Pθ-PV diagrams. Provision is also made for interfacing airflow, fuel flow, exhaust temperature and load measurement. The set up has stand-alone panel box consisting of air box, fuel tank, manometer, fuel measuring unit, transmitters for air and fuel flow measurements, temperature indicator and load indicator. Engine works with programmable Open ECU, Throttle position sensor (TPS), fuel pump, ignition coil, fuel spray nozzle, trigger sensor etc. The setup enables study of engine performance and study of ECU programming.

The setup enables study of engine performance for brake power, indicated power, frictional power, BMEP, IMEP, brake thermal efficiency, indicated thermal efficiency, Mechanical efficiency, volumetric efficiency, specific fuel consumption, A/F ratio and heat balance.

Labview based Engine Performance Analysis software package Enginesoft is provided for on line performance evaluation.

Cilck for Product specifications...246, Product specifications...246ECU, Product specifications...247
