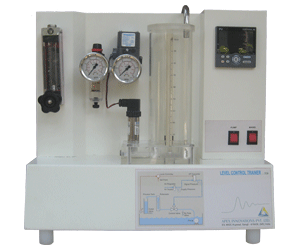

Level Control Trainer(313A)

Level control trainer is designed for understanding the basic principles of level control. The process setup consists of supply water tank fitted with pump for water circulation. The level transmitter used for level sensing is fitted on transparent process tank. The process parameter (level) is controlled by microprocessor based digital indicating controller which manipulates pneumatic control valve through I/P converter. A pneumatic control valve adjusts the water flow in to the tank. These units along with necessary piping are fitted on support housing designed for tabletop mounting.

The controller can be connected to computer through ethernet port for monitoring the process in SCADA mode.

Specially developed SCADA software is provided which helps in learning the principles of control.
