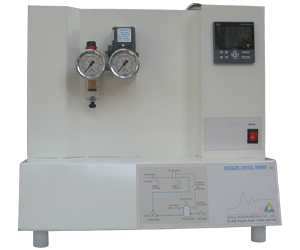

Pressure Control Trainer(314A)
Pressure control trainer is designed for understanding the basic principles of pressure control. The process set up consists of pressure vessel fitted with pneumatic control valve. Pressure transmitter is used for pressure sensing. The process parameter (Pressure) is controlled by microprocessor based digital indicating controller which manipulates pneumatic control valve fitted at outlet of pressure tank outlet through I/P converter. These units along with necessary piping are fitted on support housing designed for tabletop mounting.
The controller can be connected to computer through ethernet port for monitoring the process in SCADA mode.
Specially developed SCADA software is provided which helps in learning the principles of control.
Cilck for Product specifications
