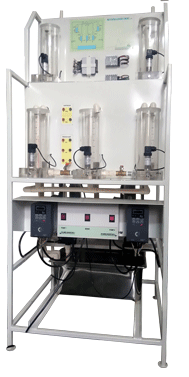

Multivariable Level Control Trainer (327)

Multivariable level control trainer is designed for teaching the basic level control principles and advanced study in complex systems for control engineering. It is a combination of four tank systems, usually also known as Quadruple Tank system.

The setup consists of supply water tank with two variable speed positive displacement pumps for water circulation, five transparent process tanks fitted with level transmitters and flow dampers. The process signals from level transmitters are controlled in DDC mode through Data acquisition device. These units along with necessary piping are fitted on standalone support structure.

The set up is connected to computer through USB port for monitoring and control by using PID logics.

Specially developed software helps in learning principles of control.

Cilck for Product specifications
