The objective of setup is to provide BLDC motor testing (1kW and 3kW), battery testing (pouch cell 1kW and cylindrical cell 3kW), temperature profiles and DC programmable electronic loadings up to 120A/120V/600W.

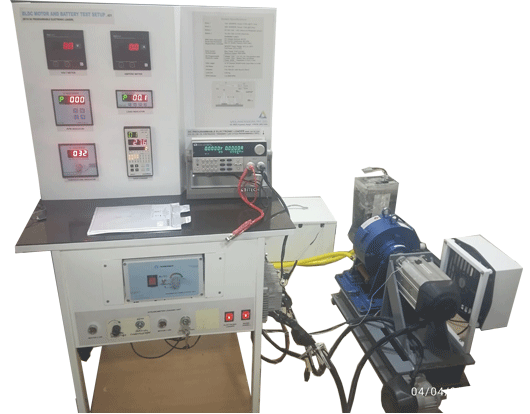

The setup consists of BLDC motor, controller, BMS, battery cells Lithium Ion (LiFe pouch cells/cylindricalcells/ cell bank), battery pack, RPM sensor, load sensor, High speed DAQ. It also consists measurement systems like shunt, ammeter, voltmeter, temperature indicator, speed indicator, load indicator, data logger. It is connected for measurement and controlling with Apex make BLDC motor-battery test software (EVsoft24.0). Also, IT9000 software for DC Programmable Electronic loading for battery test and different test modes.
The setup enables study of motor performance, results, speed -torque
characteristics, motor power, battery energy, transmission efficiency,
performance curves of the motor, battery based on drive cycle loading.
Also, battery characteristics curves like voltage, current drawn,
battery discharge rate, motor/battery power etc.In additions electronic
loader with constantcurrent(CC),constantvoltage(CV),constantresistant(CR)andconstantpower(CP)typeofloadingtobattery.
Also,temperaturesensorsand coolingjacketmounted onbatterycooling
chamberprovidesthermalanalysisandbatterycoolingstudies
