First Order & Second Order System (320B)
The set up is designed to study of transient response of first-order and second-order systems.
First Order System:
- Step response of thermometer
- Step response of thermo well
- Sinusoidal response of thermo well
Second Order System:
- Step response of mercury manometer
- Step response of manometer

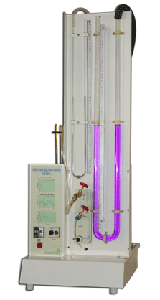

Setup consists of 'U' tube manometer, heating bath, thermometer, thermo well, beeper for recording observationsand timer for heater on-off operation. The components are mounted on base plate. The set up is tabletop mountable.
Cilck for Product specifications
